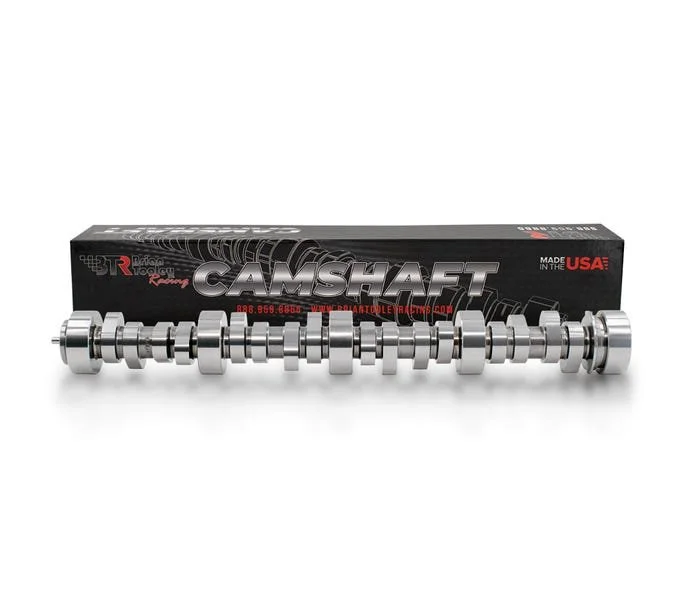

BTR LT Head Swap 230 Camshaft For LS Engines. Sold as described below; installation labor and tuning are not included.
Stock LS accessories will NOT bolt up to the cylinder heads if you have accessory drive items that normally would. The LT driver side head is not flush with the front of the engine block like the LS head is.
230/24X, .644"/.644", 113 LSA
INTAKE LOBE LIFT @ TDC: 0.06452
To put LT heads on a LS bottom end, you need the following:
- This "345" cam (LS core with intake/exhaust flipped for the LT valve arrangement) - Redrill the cylinder heads for the LS dowel location - LS3/LS9 head gaskets - BTR Trinity port injected intake manifold - LT exhaust manifolds/headers - DI injector plugs or have machine shop weld up the port
Higher than stock stall converter and lower gearing (when applicable) is recommended along with an E85 compatible fuel system.
- Manufacturer part number: BTR-345230
- Brand: Brian Tooley Racing
- Part Type: Camshaft
- Engine Type: LT Heads / LS Block
- Engine Combination: NATURALLY ASPIRATED
- Camshaft Style: HYDRAULIC ROLLER
- Cam Bolt Style: THREE BOLT
Match this part to your exact engine, cylinder heads, and intended use. Verify required clearances, spring setup, and measured pushrod length before installation. Cam stages are specific to their cam family.
Shipping: Lower-48 ground shipping is $19.99 per order. Use CAMSHIP199 for free cam-parts ground shipping on orders of $199 or more. Free shop pickup is available after your order is confirmed ready.
