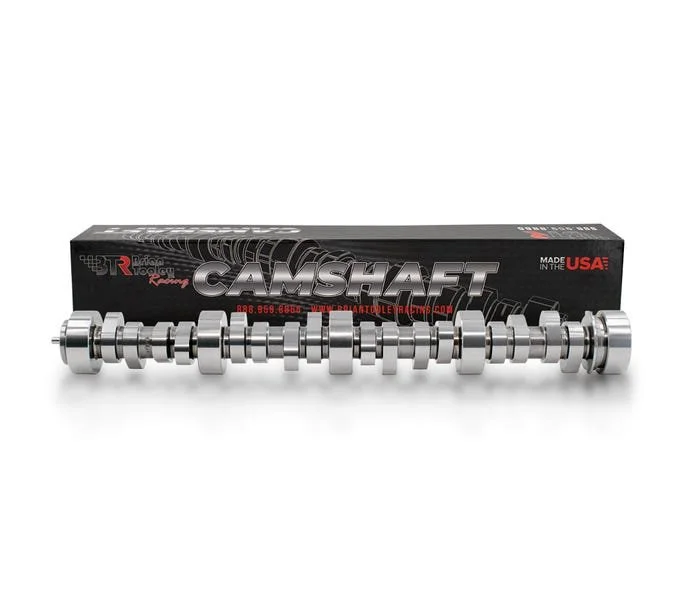

BTR LS3 Stage 5 V2 Camshaft. Sold as described below; installation labor and tuning are not included.
This cam requires fly-cutting when using OEM pistons, but the extra labor is key to obtaining maximum performance from this combination. However, fly-cutting is NOT required on a L99 engine with exhaust notches.
NOTE: To take advantage of this grind, it is imperative to use good flowing induction system along with added compression ratio.
235/25X, .646"/.646", 111 LSA
INTAKE LOBE LIFT @ TDC: 0.07643
Introducing the new LS3 Stage 5 cam from BTR. Developed in-house using BTR designed lobes, the new Stage 5 cam is the latest offering in the LS3 line up which has culminated from extensive in-house Spintron testing, coupled with thorough vetting on our Superflow Engine Dynamometer.
Higher than stock stall converter and lower gearing* (when applicable) is recommended along with an E85 compatible fuel system.
- Manufacturer part number: BTR-LS3STAGE5
- Brand: Brian Tooley Racing
- Part Type: Camshaft
- Engine Type: Gen III/Gen IV LS
- Engine Combination: NATURALLY ASPIRATED
- Camshaft Style: HYDRAULIC ROLLER
- Cam Bolt Style: THREE BOLT
Match this part to your exact engine, cylinder heads, and intended use. Verify required clearances, spring setup, and measured pushrod length before installation. Cam stages are specific to their cam family.
Shipping: Lower-48 ground shipping is $19.99 per order. Use CAMSHIP199 for free cam-parts ground shipping on orders of $199 or more. Free shop pickup is available after your order is confirmed ready.
