BTR Gen III & IV Cam Install Gasket Kit

from $105.85

BTR Gen III & IV Cam Install Gasket Kit. Choose the engine configuration below. This is a parts-only package; installation and calibration are separate.

Each configuration includes exactly the parts and quantities listed below. Check your block year, cylinder heads, oiling system and cam hardware before ordering. Additional options can be purchased with the Supporting parts button.

Includes three-bolt cam fasteners. Single-bolt cams and VVT phasers require their own fastener, sold separately. Select wet-sump versus dry-sump crank bolt correctly.

Included with your selection

Wet sump - GM crank bolt

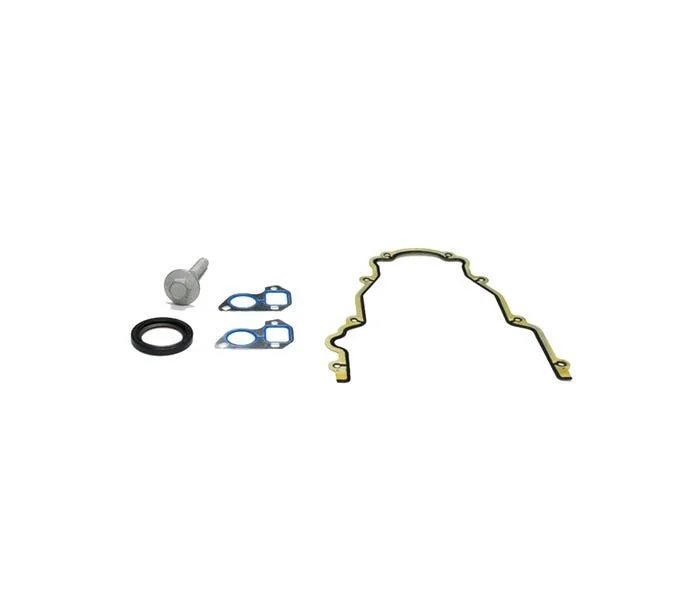

  • 1 x BTR BASIC LS CAM INSTALL KIT - TIMING COVER GASKET & FRONT MAIN SEAL, WATER PUMP GASKET
  • 1 x Chevrolet Performance Crankshaft Damper Bolt For LS Engines 12557840
  • 1 x BTR LSx CAM BOLTS (set of 3)
  • 1 x BTR CAM RETAINER PLATE - LIKE 12589016 - BTR89016
  • 1 x BTR CAM RETAINER BOLTS - SOLD IN SET OF 4 - BTR61455-4

Wet sump - ARP crank bolt

  • 1 x BTR BASIC LS CAM INSTALL KIT - TIMING COVER GASKET & FRONT MAIN SEAL, WATER PUMP GASKET
  • 1 x ARP Harmonic Balancer Bolt (Crank Bolt) for LS & LT Engines - 234-2503
  • 1 x BTR LSx CAM BOLTS (set of 3)
  • 1 x BTR CAM RETAINER PLATE - LIKE 12589016 - BTR89016
  • 1 x BTR CAM RETAINER BOLTS - SOLD IN SET OF 4 - BTR61455-4

Dry sump - GM crank bolt

  • 1 x BTR BASIC LS CAM INSTALL KIT - TIMING COVER GASKET & FRONT MAIN SEAL, WATER PUMP GASKET
  • 1 x CHEVROLET PERFORMANCE LS/LT DRY SUMP BALANCER BOLT - 11570163
  • 1 x BTR LSx CAM BOLTS (set of 3)
  • 1 x BTR CAM RETAINER PLATE - LIKE 12589016 - BTR89016
  • 1 x BTR CAM RETAINER BOLTS - SOLD IN SET OF 4 - BTR61455-4

Dry sump - ARP crank bolt

  • 1 x BTR BASIC LS CAM INSTALL KIT - TIMING COVER GASKET & FRONT MAIN SEAL, WATER PUMP GASKET
  • 1 x ARP Harmonic Balancer Bolt (Crank Bolt) for DRY SUMP LS & LT Engines - 234-2504
  • 1 x BTR LSx CAM BOLTS (set of 3)
  • 1 x BTR CAM RETAINER PLATE - LIKE 12589016 - BTR89016
  • 1 x BTR CAM RETAINER BOLTS - SOLD IN SET OF 4 - BTR61455-4

Shipping: Lower-48 ground is $19.99 per order. Use CAMSHIP199 for free cam-parts ground shipping on orders of $199 or more. Free shop pickup is available when ready.
