Backordered options can be purchased. Payment is collected at checkout; no shipping date is confirmed for those options.
Configure your parts package. Only the base contents and selected options are included. Installation labor and tuning are separate.
BTR Premium LS & LT Rocker Arm Trunnion Kit - TK002. Sold as described below; installation labor and tuning are not included.
NOTE : THE TRUNNION WILL HIT THE PASSENGER SIDE VALVE COVER BAFFLE ON EARLY STYLE LS1/LS6 COVERS!
BTR V2 LS ROCKER ARM TRUNNION KIT - TK002
FOR LS1/LS3/99-13 LS TRUCK STYLE ROCKERS
The V2 trunnion kit builds on the success and knowledge we gained with our V1 kit. The V2 features a trunnion with pre-installed inner race bearings. The V1 kits have stood up to an enormous amount of abuse, but we decided to upgrade them to a pressed inner race comprised of 52100 heat treated bearing steel, over the more commonly used 8620 carburized steel found in our V1 kits and many OEM applications. Additionally, these feature a self oiling axle with priority feeding to the trunnion itself.
Components in kit:
- Brand: Brian Tooley Racing
Match this part to your exact engine, cylinder heads, and intended use. Verify required clearances, spring setup, and measured pushrod length before installation. Cam stages are specific to their cam family.
Shipping: Lower-48 ground shipping is $19.99 per order. Use CAMSHIP199 for free cam-parts ground shipping on orders of $199 or more. Free shop pickup is available after your order is confirmed ready.
Base contents

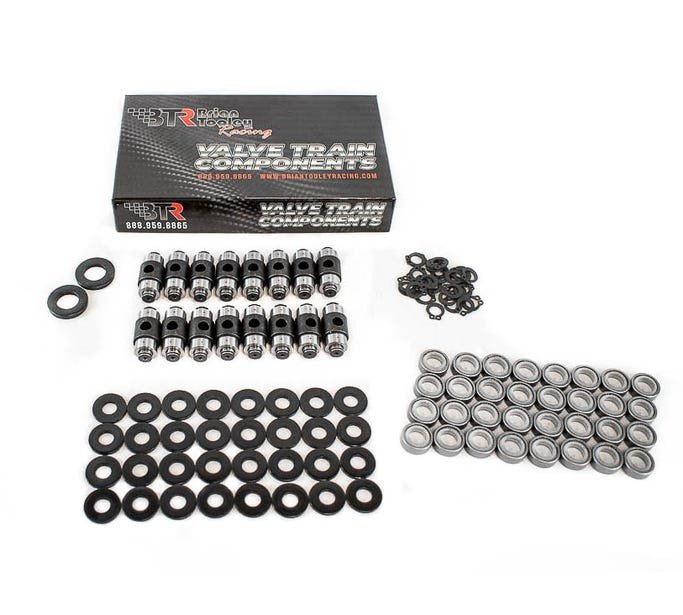

- 1 x BTR V2 ROCKER ARM TRUNNION UPGRADE KIT - NO BOLTS - GM LS - TK002NB
