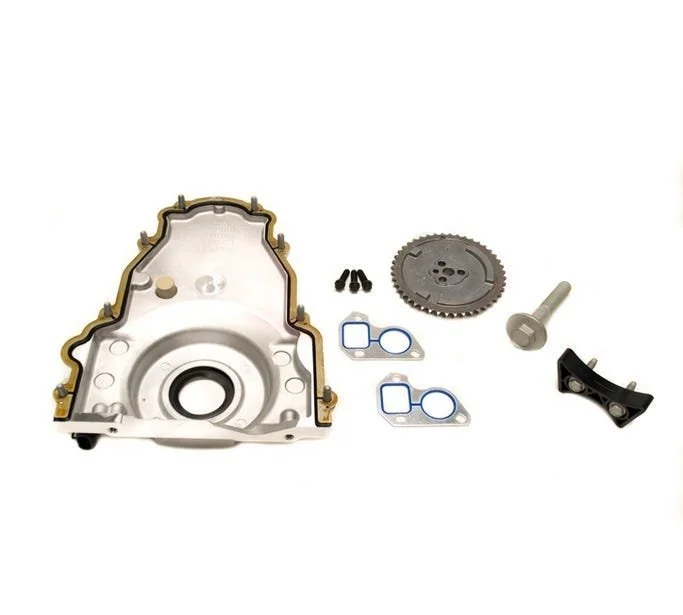

BTR VVT Conversion Kit

from $330.81

BTR VVT Conversion Kit. Choose the engine configuration below. This is a parts-only package; installation and calibration are separate.

Each configuration includes exactly the parts and quantities listed below. Check your block year, cylinder heads, oiling system and cam hardware before ordering. Additional options can be purchased with the Supporting parts button.

Four-pole Gen IV LS cam-sensor pattern. Match single-bolt versus three-bolt cam attachment. Not the LS1/LS6 rear-sensor cam-gear configuration. Calibration is required when removing VVT.

Engine-specific tuning is required. No tuning device, credits or calibration service is included. Match AFM/DOD/MDS conversion hardware to the exact engine generation. A camshaft is included only when listed below.

Included with your selection

Gen IV LS - three-bolt cam

  • 1 x BTR LS2 / LS3 TIMING COVER KIT - LIKE 12633906 - BTR-33906
  • 1 x BTR LSx CAM BOLTS (set of 3)
  • 1 x BTR FOUR POLE CAM GEAR - LS2/LS3 - LIKE 12586481 - BTR86481
  • 1 x BTR LS2/LS3/LS7 TIMING CHAIN DAMPENER LIKE 12588670 - BTR88670
  • 1 x BTR HD TIMING CHAIN - LIKE 12646386 - BTR46386
  • 1 x BTR LS WATER PUMP GASKETS - SOLD IN PAIRS - BTR-30223-2
  • 1 x Chevrolet Performance Crankshaft Damper Bolt For LS Engines 12557840
  • 1 x BTR CAM RETAINER PLATE - LIKE 12589016 - BTR89016
  • 1 x BTR CAM RETAINER BOLTS - SOLD IN SET OF 4 - BTR61455-4
  • 1 x BP AUTOMOTIVE VVT TO NON-VVT PLUG AND PLAY ADAPTER - A80

Gen IV LS - single-bolt cam

  • 1 x BTR LS2 / LS3 TIMING COVER KIT - LIKE 12633906 - BTR-33906
  • 1 x CHEVROLET PERFORMANCE FOUR POLE CAM TIMING SPROCKET - SINGLE BOLT LS - 12591689
  • 1 x CHEVROLET PERFORMANCE CAM BOLT - FOR SINGLE BOLT CAMS - 11561283
  • 1 x BTR LS2/LS3/LS7 TIMING CHAIN DAMPENER LIKE 12588670 - BTR88670
  • 1 x BTR HD TIMING CHAIN - LIKE 12646386 - BTR46386
  • 1 x BTR LS WATER PUMP GASKETS - SOLD IN PAIRS - BTR-30223-2
  • 1 x Chevrolet Performance Crankshaft Damper Bolt For LS Engines 12557840
  • 1 x BTR CAM RETAINER PLATE - LIKE 12589016 - BTR89016
  • 1 x BTR CAM RETAINER BOLTS - SOLD IN SET OF 4 - BTR61455-4
  • 1 x BP AUTOMOTIVE VVT TO NON-VVT PLUG AND PLAY ADAPTER - A80

Shipping: Lower-48 ground is $19.99 per order. Use CAMSHIP199 for free cam-parts ground shipping on orders of $199 or more. Free shop pickup is available when ready.
