Fuel Injectors for LS2
Fuel Injectors for LS2

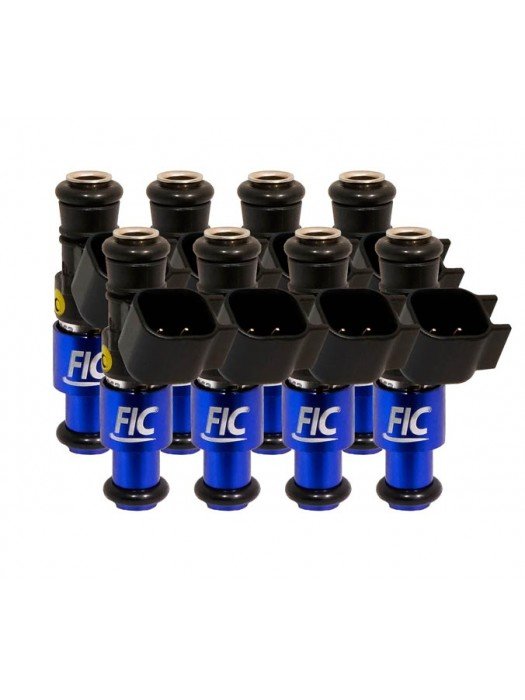

1440cc (160 lbs/hr at OE 58 PSI fuel pressure) FIC Fuel Injector Clinic Injector Set for LS2 engines (High-Z)

$1,470.00

LS2 Fuel Injector Clinic Injector Set: 8x1440cc/min (140lbs/hr) at 3 bar (43.5psi) fuel pressure and 160lbs/hr (1700cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. This injector set features easy to install, drop-in fitment with the factory style connector – no plug conversion required! Utilizing the latest injector technology and featuring state of the art matching with Data Match Technology. Plug and Play GM ECU Data available on our website.

Fuel Injector Clinic’s 1440cc/min high impedance injector fits nicely between our 1200 and 1650cc injectors. The 1440cc injector is compatible with all race fuels and has excellent idle performance in street driven cars while still providing enough fuel to support higher horsepower output on both E85 and gasoline.

The 1440cc high impedance injector can be used with any fuel type based on the stainless alloy valve construction. It is compatible with pump gasoline, E85, Q16, VP Import, FTW and other MTBE oxygenated race fuels!

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

LS2 Fuel Injector Clinic Injector Set: 8x1440cc/min (140lbs/hr) at 3 bar (43.5psi) fuel pressure and 160lbs/hr (1700cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. This injector set features easy to install, drop-in fitment with the factory style connector – no plug conversion required! Utilizing the latest injector technology and featuring state of the art matching with Data Match Technology. Plug and Play GM ECU Data available on our website.

Fuel Injector Clinic’s 1440cc/min high impedance injector fits nicely between our 1200 and 1650cc injectors. The 1440cc injector is compatible with all race fuels and has excellent idle performance in street driven cars while still providing enough fuel to support higher horsepower output on both E85 and gasoline.

The 1440cc high impedance injector can be used with any fuel type based on the stainless alloy valve construction. It is compatible with pump gasoline, E85, Q16, VP Import, FTW and other MTBE oxygenated race fuels!

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

Fitment Specifications

Bottom O-ring Outer Diameter - 15mm O-ring

Cylinder Quantity - 8

Height - 53mm

Impedance - High-Z

Top O-ring - 14mm

Horsepower supported

Engine Aspiration - NA or supercharged

Fuel Pressure - 58

WHP on E85 at 43psi 90%DC NA - 1291.25

WHP on E85 at 43psi 90%DC Supercharged - 1173.87

WHP on E85 at 43psi 90%DC Turbo - 1076.04

WHP on E85 at 58psi 90%DC NA - 1491.40

WHP on E85 at 58psi 90%DC Supercharged - 1355.82

WHP on E85 at 58psi 90%DC Turbo - 1242.83

WHP on Gas at 43psi 90%DC NA - 1678.63

WHP on Gas at 43psi 90%DC Supercharged - 1526.03

WHP on Gas at 43psi 90%DC Turbo - 1398.86

WHP on Gas at 58psi 90%DC NA - 1938.82

WHP on Gas at 58psi 90%DC Supercharged - 1762.56

WHP on Gas at 58psi 90%DC Turbo - 1615.68
