Fuel Injectors for LS3 , LS7 , and LSA
Fuel Injectors for LS3 , LS7 , and LSA

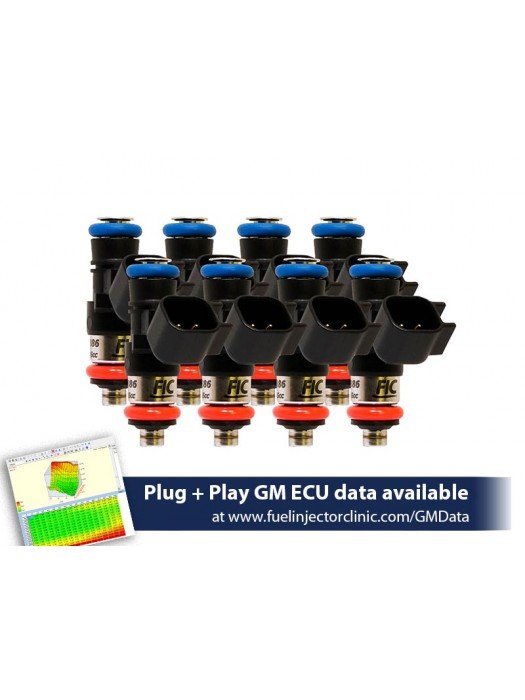

850cc (94 lbs/hr at OE 58 PSI fuel pressure) FIC Fuel Injector Clinic Injector Set for LS3, LS7, LSA, L76, L92, and L99 engines (High-Z) Previously 770cc

$735.00

LS3, LS7, LSA, L76, L92, L99 Fuel Injector Clinic Injector Set: 8x850cc/min (81lbs/hr) at 3 bar (43.5psi) fuel pressure and 94lbs/hr (980cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. Drop in plug fitment! These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Plug and Play GM ECU Data available on our website.

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

LS3, LS7, LSA, L76, L92, L99 Fuel Injector Clinic Injector Set: 8x850cc/min (81lbs/hr) at 3 bar (43.5psi) fuel pressure and 94lbs/hr (980cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. Drop in plug fitment! These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Plug and Play GM ECU Data available on our website.

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

Fitment Specifications

Bottom O-ring Outer Diameter - 15mm O-ring

Cylinder Quantity - 8

Height - 38mm

Impedance - High-Z

Top O-ring - 14mm

Horsepower supported

Engine Aspiration - naturally aspirated

Fuel Pressure - 58

WHP on E85 at 43psi 90%DC NA - 762.20

WHP on E85 at 43psi 90%DC Supercharged - 692.91

WHP on E85 at 43psi 90%DC Turbo - 635.16

WHP on E85 at 58psi 90%DC NA - 880.34

WHP on E85 at 58psi 90%DC Supercharged - 800.31

WHP on E85 at 58psi 90%DC Turbo - 733.62

WHP on Gas at 43psi 90%DC NA - 990.86

WHP on Gas at 43psi 90%DC Supercharged - 900.78

WHP on Gas at 43psi 90%DC Turbo - 825.71

WHP on Gas at 58psi 90%DC NA - 1144.44

WHP on Gas at 58psi 90%DC Supercharged - 1040.40

WHP on Gas at 58psi 90%DC Turbo - 953.70
